Product parameters:

Light source: 80mw red laser diode

Keyboard layout: Approximately 19mm inclined, QWERTY keyboard layout

Keyboard size: 100mm (H) * 240mm (W)

Keyboard position: 100mm from the bottom of the emitter

Projection surface: non reflective, opaque surface

Recognition rate: 350 words/minute

Operating surface: Any plane

Working environment: 0-35 ℃/90% RH

Storage environment: -5~35 ℃/-90% RH

Size (mm): 38mm × 75mm × 18mm

External power supply: USB power/below 5V1A

Battery capacity: Lithium polymer rechargeable battery 1000mAH (MAX) @ 3.7V

Battery working time: 120 minutes

Battery charging time: 200 minutes

USB interface: USU1.12.0, USB HID Ver.1.0

Bluetooth: V3.0 (class2), HID Profile. 1.0

Frequency range: 2402-2480MHz

Channel: 79

Modulation: GFSK

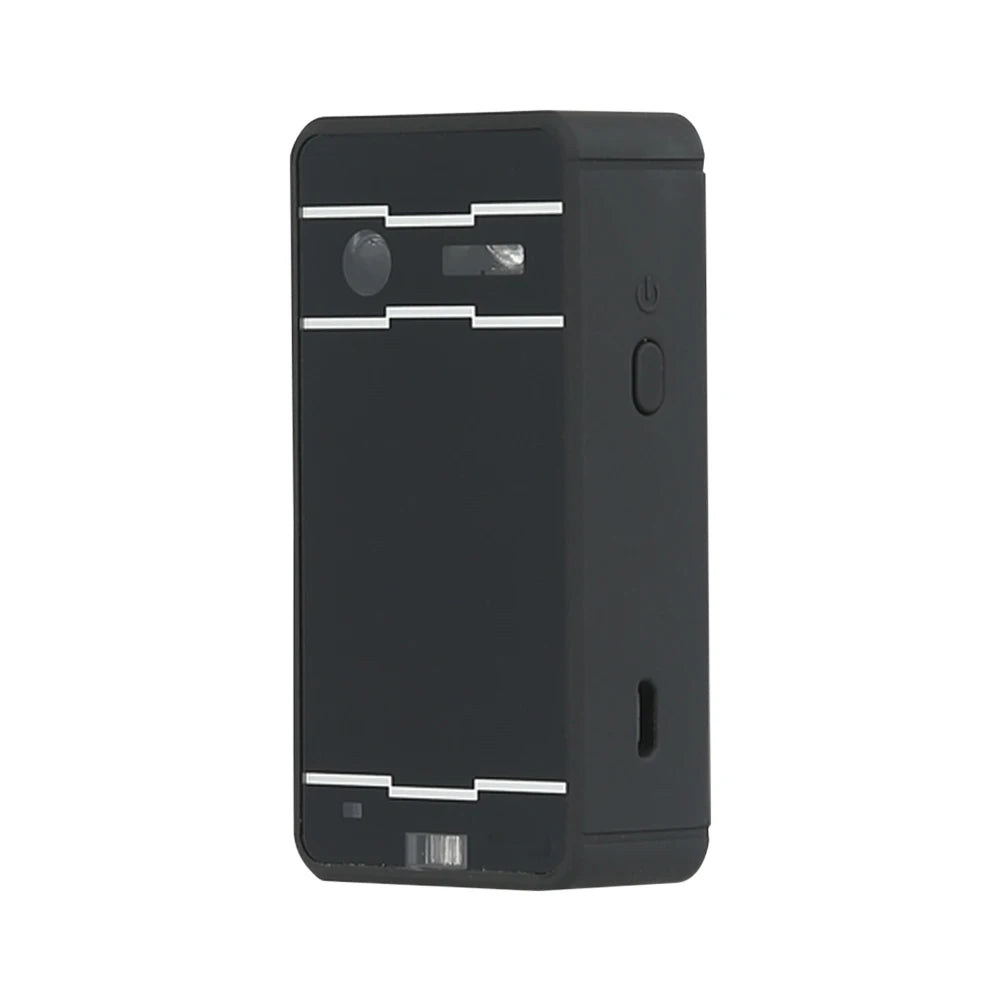

1. Product Overview:

Laser projection keyboard is a keyboard connected to the main device through Bluetooth HID, suitable for desktop computers, tablets, smartphones, game consoles and other devices. As a new input device, the projection keyboard uses a built-in infrared laser emitter to project a standard keyboard outline on the work plane. Fingers click on the pattern, and the click position is determined through optical recognition to complete information input. The laser projection keyboard does not have physical buttons and is connected to the main device through Bluetooth. It is compact, easy to carry, and can adapt to the vast majority of work environments.

2. Working principle:

The keyboard projector of the laser projection keyboard will project the outline of the keyboard on the work plane. Its bottom emits infrared light to detect objects such as fingers. When an object passes through the infrared light irradiation area, the sensor will detect the infrared light reflected by the object. Perform keyboard operations by analyzing the position and movement of objects.

3. Product features:

• British for QWERTY keyboard layout

Portable design

Standard keyboard key size and spacing for easy operation

No moving parts, durable for use

Built in rechargeable lithium battery for easy portability
